LB8 LED Loading Bay Dock Light

Product Description / Technical Information

LB8 LED Loading Bay Dock Light Key Features

Ultra Bright Light Source Highly efficient 37W 5000lm LED Head	Ruggedised Polycarbonate Food Safe Construction Shock & vibration resistant. IP54 LED head	Maximum Flexibility & Positioning Multi point adjustability allows optimum positioning to be obtained	Maintenance Free 50,000 hour ultra long life

Unique Multi Focusing Light System – Flood & Spot Beam Adjustability

The Ritelite LB8 LED Loading Bay Dock Light features a rotating variable focusing system that can be adjusted between spot and flood beams for multiple applications, the spot beam enables light to reach further inside container / warehouse area and the light can be focused to ensure minimum glare to workers.

Flood Beam

Spot Beam

Key Features

• Minimal power consumption
• Maintenance free – 50,000 hour average life
• High output LED’s – 5000 lumen output
• Spot to flood variable focusing system
• Compact head design to reduce possibility of impact damage
• Suitable for food grade applications – polycarbonate lens – No glass!
• IP54 LED head – Dust tight and able to withstand water spray
• Options available for a range of input voltage including 110V – 240V AC, 24V AC & 24V DC
• Shock and vibration resistant
• Compact, foldable design enables light to be folded back against the wall of the dock when not in use.

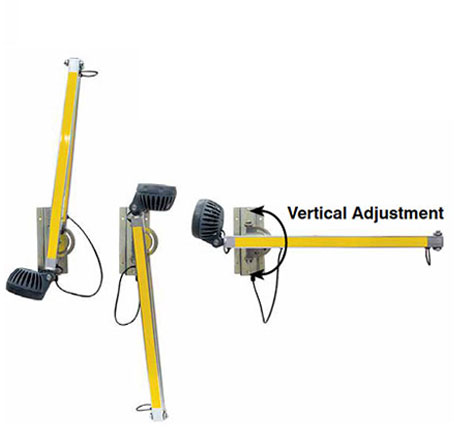

• Moves in 2 planes and pivots at 3 points to allow user to easily and accurately position light where required for maximum control of light
• All components made from high quality materials to ensure maximum life in arduous conditions
• Smooth friction based infinite adjustment of head and arm also allows the light to deflect out of the way if pushed from passing loads
• Connection to mains supply via 5amp fuse
• Fast and easy to install, integrates with existing equipment

DIMENSIONS

Storage: 84.5 cm long x 24 cm height x 22cm deep|Fully extended length: 1m 41cm
