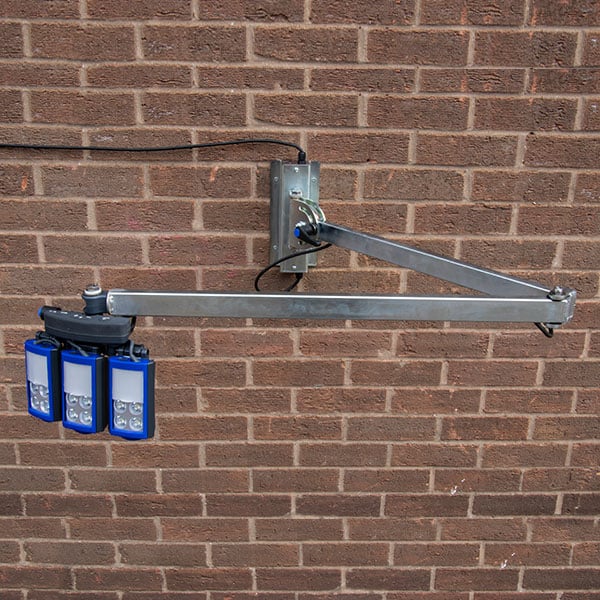

LB10 LED Loading Bay Dock Light

The Ritelite LB10 LED loading bay dock light offers users an ultra bright LED light with triple beam multi directional light heads, in-built variable focusing system to give both spot or flood beam angles and dimmable LED light output control.


LB10 LED Loading Bay Dock Light

Product Description / Technical Information

LB10 LED Loading Bay Dock Light Key Features

LB10 Ultra Bright Light Source LB10 Loading Bay Dock Light Ruggedised Light Head LED Loading Bay Dock Light - Adjustable Joints LB10 Maintenance Free
Ultra Bright Light Source
Highly efficient 90W 12000lm LED Head
Ruggedised Polycarbonate Food Safe Construction
Shock & vibration resistant. IP65 LED head
Maximum Flexibility & Positioning
Multi point adjustability allows optimum positioning to be obtained
Maintenance Free
50,000 hour ultra long life

Unique Multi Focusing Light System – Flood & Spot Beam Adjustability

The unit features a variable focusing system that can be adjusted between spot and flood beams (or both at once) for multiple applications, the spot beam enables light to reach further inside container / warehouse area and the light can be focused to ensure minimum glare to workers.

LB10 Flood to Spot BlendFlood Beam

LB10 Loading Bay Light - Flood Beam

Spot Beam

LB10 Loading Bay Light - Spot Beam

Key Features

  • Minimal power consumption
  • Maintenance free – 50,000 hour life
  • High output LED’s – 12000 lumen output
  • Spot to flood variable focusing system
  • Compact head design to reduce possibility of impact damage
  • Suitable for food grade applications – polycarbonate lens – No glass!
  • IP65 LED head – Dust tight and able to withstand water spray
  • Suitable for input voltage of 110V – 240V AC
  • Shock and vibration resistant
  • Compact, foldable design enables light to be folded back against the wall of the dock when not in use.
  • Moves in 2 planes and pivots at 3 points to allow user to easily and accurately position light where required for maximum control of light
  • All components made from high quality materials to ensure maximum life in arduous conditions
  • Smooth friction based infinite adjustment of head and arm also allows the light to deflect out of the way if pushed from passing loads
  • Connection to mains supply via 5amp fuse.
Product Code Wattage Voltage Lumen Output Weight
LB/LEDK10    90W 110V – 240V         12000 5.1 Kg


Storage: 88.5 cm long x 24 cm height x 22cm deep|Fully extended length: 1m 45cm

LB10 LED Loading Bay Dock Light - Adjustment
