The Quad Pod is a unique mobile lighting solution for construction, industrial applications. Designed for use as a true alternative to towed lighting towers yet quick to deploy, the Quad Pod K65 combines optimised illumination & uniformity with minimised light loss, glare & light pollution for many industrial applications.

A High Power Mobile Outdoor LED Floodlighting Solution

The Quad Pod K65 mobile lighting tower is the ideal lighting solution for all applications where area floodlighting is required. Ritelite’s Quad Pod K65 mobile lighting towers are compact to store and easy to transport and set up extending up to 6.5m total height. The fully flexible high power LED light heads can be set up to illuminate from 180 to 360 degrees to cover all temporary lighting requirements producing up to 266,000 equivalent lumens* light output from a maximum 1460W power requirement.

What makes the Quad Pod K65 Mobile Lighting Tower the highest performing flood light in its class?

1460W

High Power, instant, flicker free LED light for large area floodlighting.

Beam Control

Optimised illumination & uniformity of light

Rapid Deployment

Rapid safe deployment by one person.

Leight Pollution

Approximately 70% lower light pollution than typical lighting tower designs

Height 6.5m

Compact to store and transport, extending to 6.5m height

RitePOWER

Powered by diesel generators, mains power or lithium battery powered generators

110V & 240V AC input models available

Buy

Quantity

KEY FEATURES & BENEFITS OF THE QUAD POD K65 MOBILE LIGHTING TOWER

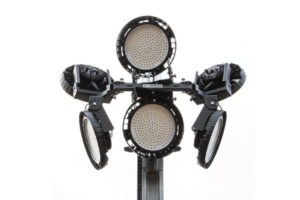

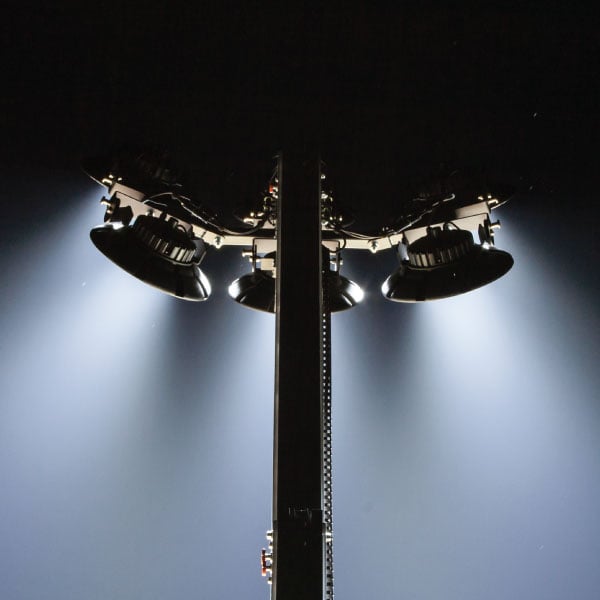

Quad Pod - Head

High power beam controlled LED light heads providing up to 266,000 equivalent lumens* from a maximum 1460W power consumption. All light directed onto work task area

Quad Pod - Mast

Unique parallel mast design – The centre of gravity is very low with the weight perfectly balanced over the wheels for easy and safe handling even on difficult terrain. Independently adjustable legs.

Quad Pod - Deploy

Forklift pockets and tie down points for safe and fast handling, loading & unloading at storage depots and work sites

Quad Pod - RCBO

Safe to operate – in-built mast safety systems and operator level RCBO electrical safety isolation switch.

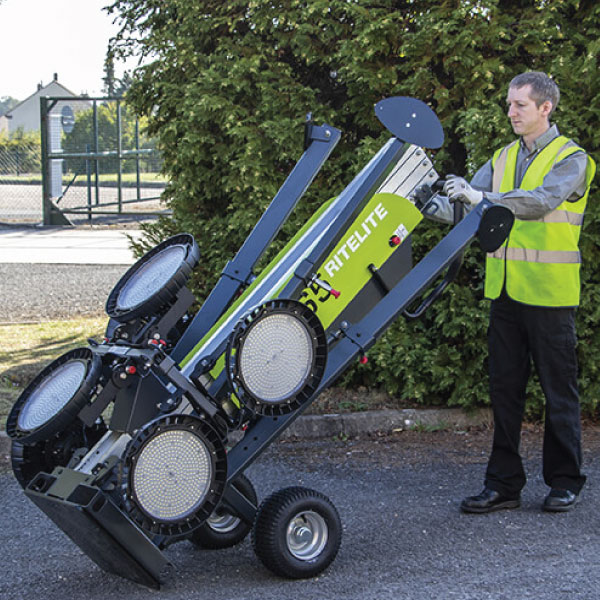

Quad Pod - Deploy

One person quick deployment. Highly mobile and able to be manoeuvred over any terrain enabling use in a much wider range of applications than other lighting towers

Quad Pod - Power

Silent, fume free operation when mains or lithium battery generator powered – Low carbon. Zero Emissions.
Quad Pod
Quad Pod MK5
Quad Pod MK5
Quad Pod

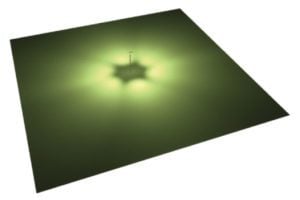

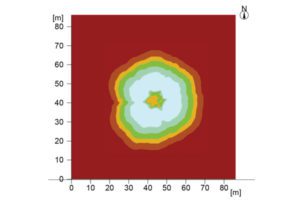

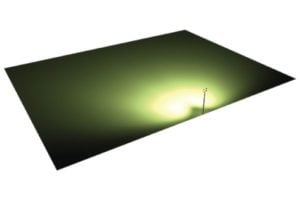

360 Degree Area Lighting

For Applications Where Multi-Directional Lighting Is Required

  • 3 x 450W light heads on K65 Quad Pod
  • Average 20 lux over 6724 m2
Quad Pod MK5 light heads 180 degrees
Quad Pod MK5 light heads 180 degrees
Quad Pod MK5 light heads 360 degrees

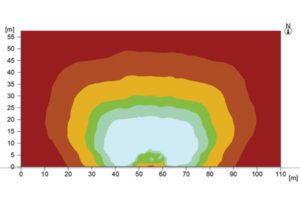

180 Degree Directional Area Lighting

For Applications Where Multi-Directional Lighting Is Required

  • 3 x 450W light heads on K65 Quad Pod
  • Average 20 lux over 6868 m2
Quad Pod MK5 light heads 360 degrees
Quad Pod MK5 light heads 360 degrees
Quad Pod MK5 light heads 180 degrees

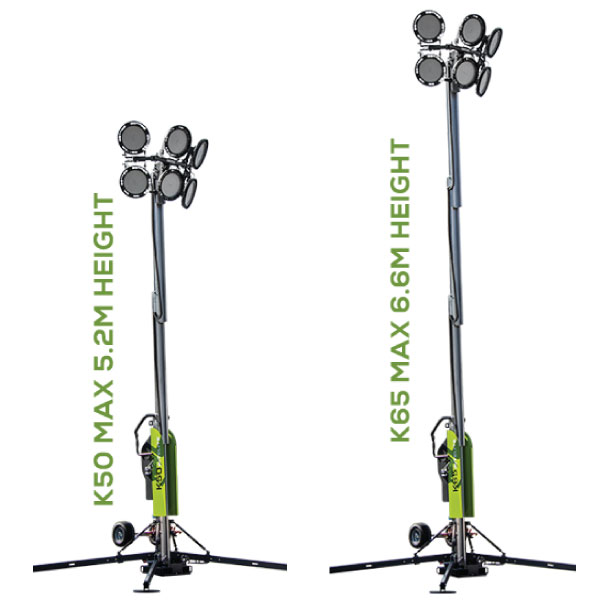

Quad Pod K50 & K65 Mobile Area Lighting Towers

The full standard model range is as shown in the below tables. To discuss specific requirements or the options available in more detail please do not hesitate to contact us or call 01780 765600

K50

Product Code Mast Height Light Heads Weight Closed Dimensions Open Dimensions Wattage Voltage Lumens Equivalent Lumens
K50/MK5-L2X3/110/T60309 5m L2x3 215Kg 1.09 x 0.83 x 1.95m 2.37 x 3.1 x 5m 730 110 97,000 129,000
K50/MK5-L2X3/230/T60309 5m L2x3 215Kg 1.09 x 0.83 x 1.95m 2.37 x 3.1 x 5m 730 230 97,000 129,000
K50/MK5-L3X3/110/T60309 5m L3X3 220Kg 1.09 x 0.83 x 1.95m 2.37 x 3.1 x 5m 1100 110 146,000 208,000
K50/MK5-L3X3/230/T60309 5m L3X3 220Kg 1.09 x 0.83 x 1.95m 2.37 x 3.1 x 5m 1100 230 146,000 208,000
K50/MK5-L3X4/110/T60309 5m L3X4 225Kg 1.09 x 0.83 x 1.95m 2.37 x 3.1 x 5m 1460 110 195,000 266,000
K50/MK5-L3X4/230/T60309 5m L3X4 225Kg 1.09 x 0.83 x 1.95m 2.37 x 3.1 x 5m 1460 230 195,000 266,000

K65

Product Code Mast Height Light Heads Weight Closed Dimensions Open Dimensions Wattage Voltage Lumens Equivalent Lumens
K65/MK5-L2X3/110/T60309 6.5m L2x3 227Kg 1.09 x 0.83 x 1.95m 2.37 x 3.1 x 6.5m 730 110 97,000 129,000
K65/MK5-L2X3/230/T60309 6.5m L2x3 227Kg 1.09 x 0.83 x 1.95m 2.37 x 3.1 x 6.5m 730 230 97,000 129,000
K65/MK5-L3X3/110/T60309 6.5m L3x3 232Kg 1.09 x 0.83 x 1.95m 2.37 x 3.1 x 6.5m 1100 110 146,000 208,000
K65/MK5-L3X3/230/T60309 6.5m L3x3 232Kg 1.09 x 0.83 x 1.95m 2.37 x 3.1 x 6.5m 1100 230 146,000 208,000
K65/MK5-L3X4/110/T60309 6.5m L3X4 237Kg 1.09 x 0.83 x 1.95m 2.37 x 3.1 x 6.5m 1460 110 195,000 266,000
K65/MK5-L3X4/240/T60309 6.5m L3X4 237Kg 1.09 x 0.83 x 1.95m 2.37 x 3.1 x 6.5m 1460 230 195,000 266,000
