K45 Lite & Ultra-Lite Portable Area Floodlight

The K45-LITE & Ultra-LITE LED Portable Area Lighting System is the ideal lighting solution for many area lighting applications. It has a compact design with a directional or 360 degree head deployment to cover all temporary lighting requirements. The K45-LITE is easy to transport and store and only a total weight of 23 kg. With tripod options up to 4.1M the K45-LITE offers superb light output from a low wattage requirement for both indoor and outdoor applications.

Clear

Quantity

K45 LITE 360 Setup Video

The K45 LITE Portable Lighting Tower is quick and straightforward to set up with either a standard generator or a Ritelite Battery Powered generator system. The Tripod is quick to deploy and extends to up to 4.1M and the unique triple headlet light head can be set up to light whatever sized area required from 180 degrees to 360 degrees. The K45 LITE can be dimmed to meet any lighting requirement or to extend battery duration. The addition of ballast bags to the tripod offers increase stability.

K45-LITE-S 360 Setup Video

The K45 LITE-S Portable Lighting Tower is quick and straightforward to set up with either a standard generator or a Ritelite Battery Powered generator system. The Tripod is quick to deploy and extends to up to 4.1M and the unique triple headlet light head can be set up to light whatever sized area required from 180 degrees to 360 degrees. The K45 LITE-S can be dimmed to meet any lighting requirement or to extend battery duration. The addition of ballast bags to the tripod offers increase stability.

Product Description / Technical Information

Ultra Lightweight, High Power, Multi-Functional 360º Area Lighting Systems with a choice of three light head options

The K45 LITE LED Portable Area Floodlight is the ideal lighting solution for all temporary lighting applications. With a compact design the K45 LITE is easy to transport and lightweight enough for one person to move. It has a choice of three light heads, all with directional or 360 degree head deployment to cover all temporary lighting requirements.

Key Features and Benefits of the K45 LITE

  • Easy to transport and setup, no planning permission required
  • Fast, simple, safe deployment system
  • Choice of three light head options

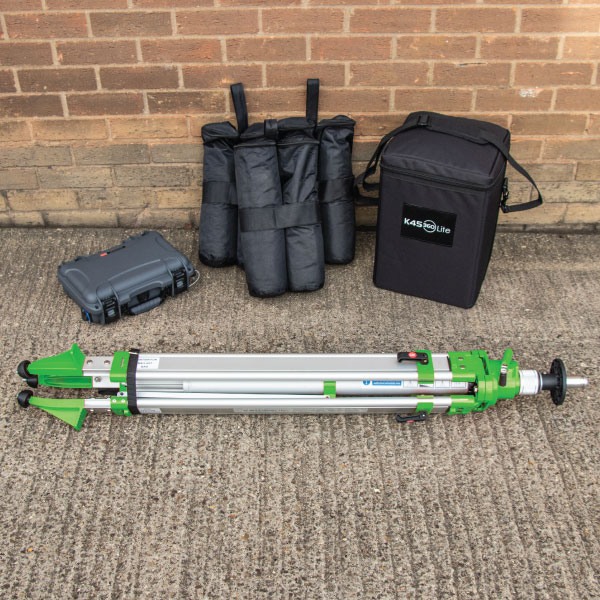

  • Highly robust, lightweight tripods with additional flexible ballast bags for increased stability
  • 23kg total system weight split into easy to carry modules
  • 3.1-4.1m height from small ground footprint
  • Fitted with standard DIN tripod mounting for use with all industry standard tripods with DIN spigot
  • Fully dimmable for optimum control of light output and run-time when using the optional mobile 110v & 230v battery powered generators

Directional Area Lighting

For Directional Area Lighting Requirements

  • 6 x 100W Light heads on K45-LITE
  • Average 20 lux over 2028 m2 based on a deployed height of 4.1m
K45 light heads - 180º

360 Degree Area Lighting

For Applications Where Multi-Directional Lighting Is Required

  • 6 x 100W Light heads on K45-LITE
  • Average 20 lux over 3552 m2 based on a deployed height of 4.1m
K45 light heads - 360º

GENERAL SPECIFICATION

  • Height Deployed - 3.1 – 4.1m (depending on tripod)
  • Mast type - manual

LIGHT HEAD OPTIONS

K45-Lite & Separate LED Driver

K45-Lite with Integral LED Driver

K45-Ultra-Lite with Integral LED Driver

Ritelite K45-Lite light head and driver Ritelite K45-Lite-S light head Ritelite K45-Ultra-Lite light head
SLK45LED-LITE SLK45LED-LITE-S SLK45-ULTRA-LITE
Light Output 85,000 Lumens Light Output 85,000 Lumens Light Output 43,500 Lumens
Light head weight – 9.44kg Driver weight  - 5kg Weight 14Kg (excluding tripod) Weight 9Kg (excluding tripod)
Power Requirement 650W Power Requirement 650W Power Requirement 320W

ACCESSORIES

Product Code Description
SLK45-LITE/TRP/3M A robust, light weight tripod designed for outdoor use with the K35-Lite and K45-Lite.
SLK45-LITE/TRP/IN A robust, light weight tripod designed for indoor use with the K35-Lite and K45-Lite.
SLK45-LITE/BB A set of three ballast bags which can be attached to the legs of the outdoor tripod.
SE/110EL142 110V extension leads in a variety of lengths with a choice of plugs and sockets.
SE/220EL142 240V extension leads in a variety of lengths with a choice of plugs and sockets.
SLK1770BP A battery power generator for running our lighting systems for several hours.
K50/K65-GEN/1.6KW/110 A compact 1.6KW petrol generator with 110V output socket.
K50/K65-GEN/1.6KW/240 A compact 1.6KW petrol generator with 240V output socket.
K50/K65-GEN/3.5KW/110 A compact 3.0KW petrol generator with 110V output socket.
K50/K65-GEN/3.5KW/240 A compact 3.0KW petrol generator with 240V output socket.
Click here to view more details about the K45-Lite on our portable lighting website
