A High Power Mobile Outdoor LED Floodlighting Solution – What makes the Quad Pod K65 the highest performing sports flood light in its class?

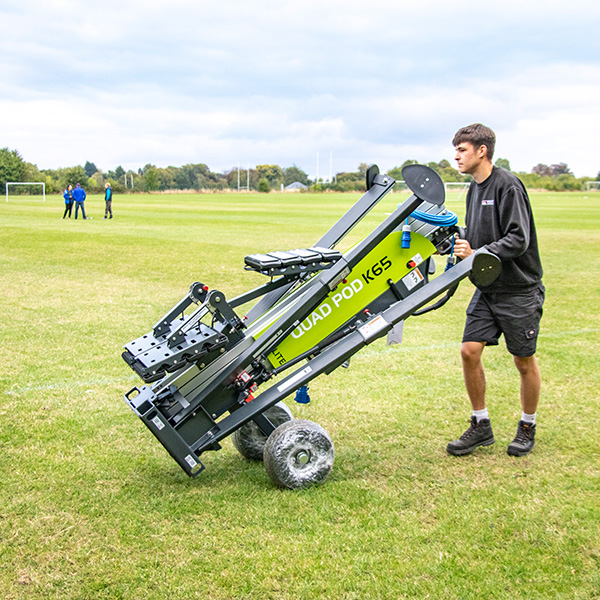

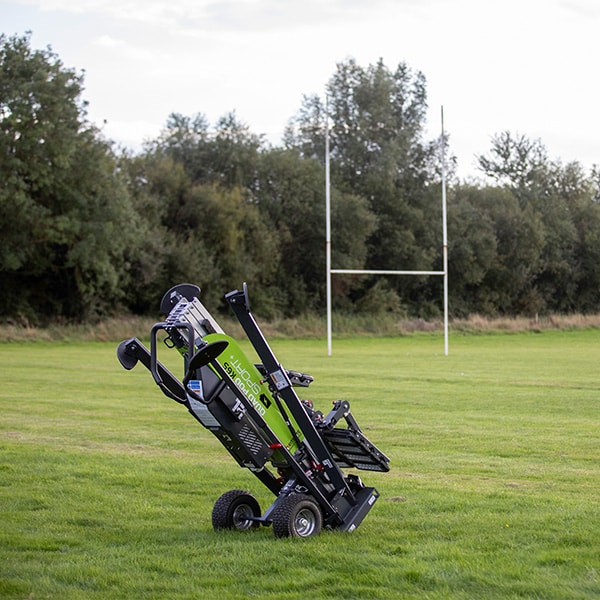

The Quad Pod K65 mobile lighting tower is the ideal lighting solution for all applications where area floodlighting is required. Ritelite’s Quad Pod K65 mobile lighting towers are compact to store and easy to transport and set up extending up to 6.5m total height. The fully flexible high power LED light heads can be set up to illuminate from 180 to 360 degrees to cover all temporary lighting requirements producing up to 266,000 equivalent lumens* light output from a maximum 1460W power requirement.
What makes the Quad Pod K65 Mobile Lighting Tower the highest performing flood light in its class?
KEY FEATURES & BENEFITS OF THE QUAD POD K65 MOBILE SPORTS LIGHTING TOWER

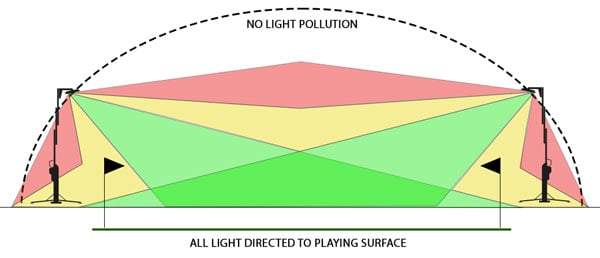

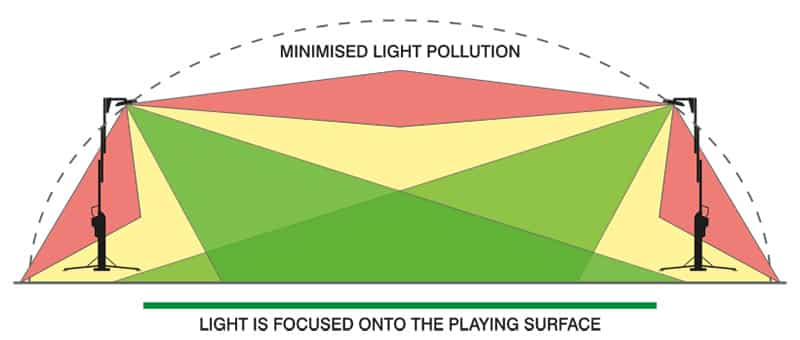

ENGINEERED BEAM CONTROLLED LENSING THAT KEEPS LIGHT ON THE PITCH – NOT IN THE SKY
Our custom, beam-controlled lensing system directs light precisely onto the playing surface, delivering uniform coverage while reducing glare and light pollution. It’s ideal for sports clubs, schools and organisations training in residential areas or under lighting restrictions.
How Many Quad Pod K65 Mobile Lighting Towers Do I Need for My Pitch
Every training set-up is different, and the number of Quad Pod K65 lights that you will need will depend on several factors including the size of your area, the standard of training or match play, the number of players, and your available budget.

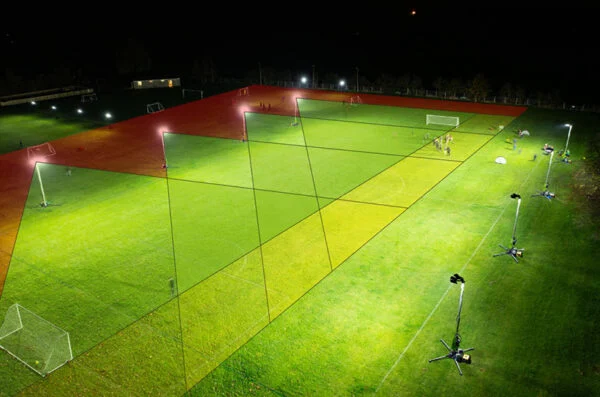

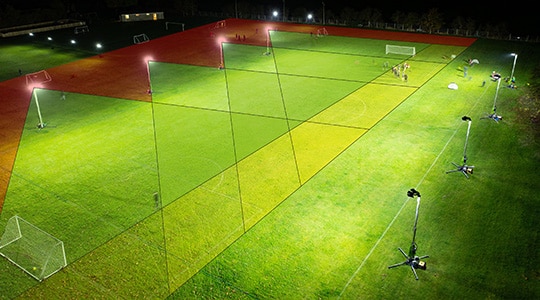

The comparison below shows how a 6-light and 8-light setup perform on a full-size 11v11 pitch.
More lights deliver better uniformity, fewer dark spots, and higher overall light levels — ideal for advanced training or match conditions.
Comparing a 6x K65 setup to a 8x K65 setup
(11 V 11 full size adult pitch)

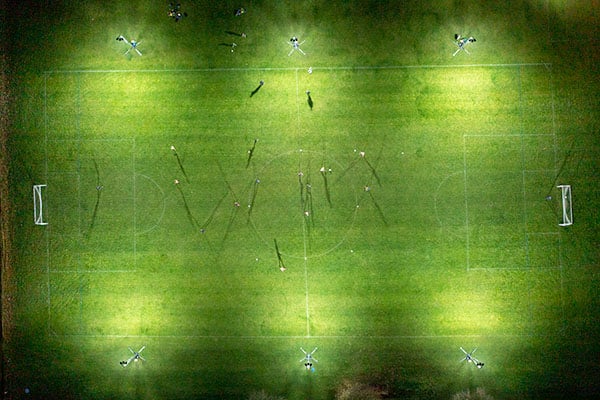

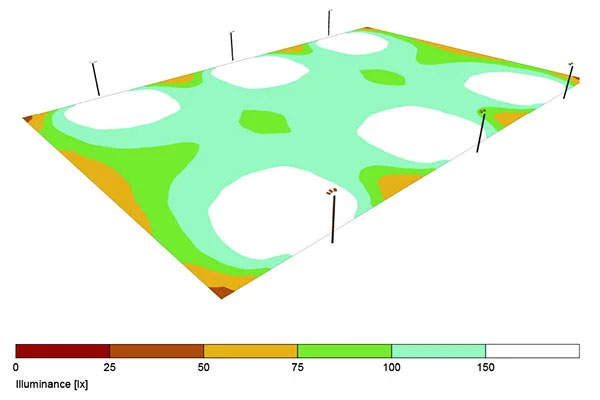

6 Quad Pod K65
Average Lux: 148

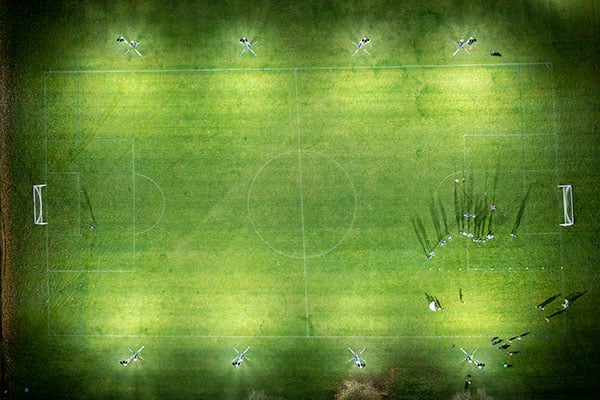

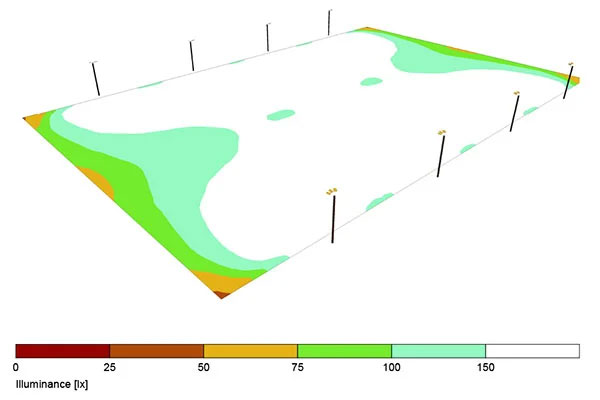

8 Quad Pod K65
Average Lux: 201

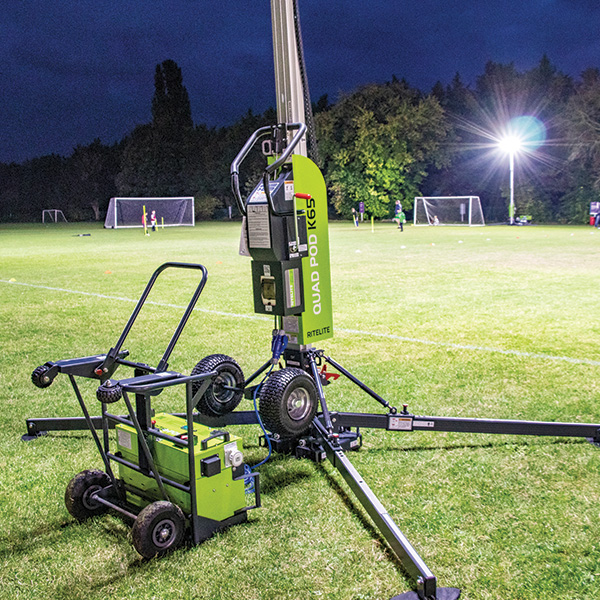

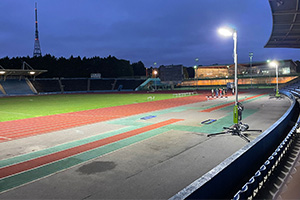

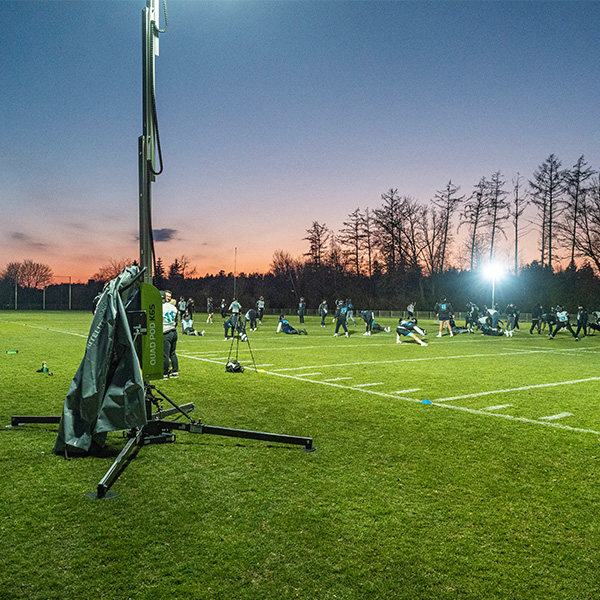

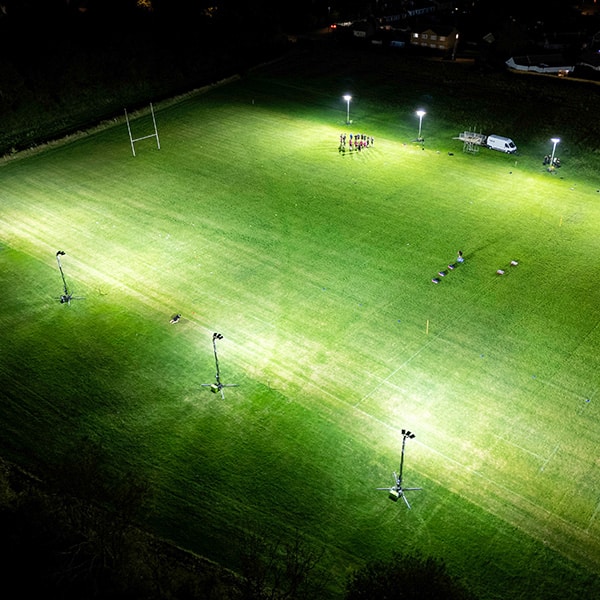

Quad Pod K65 Mobile Sports Lighting Tower For Football

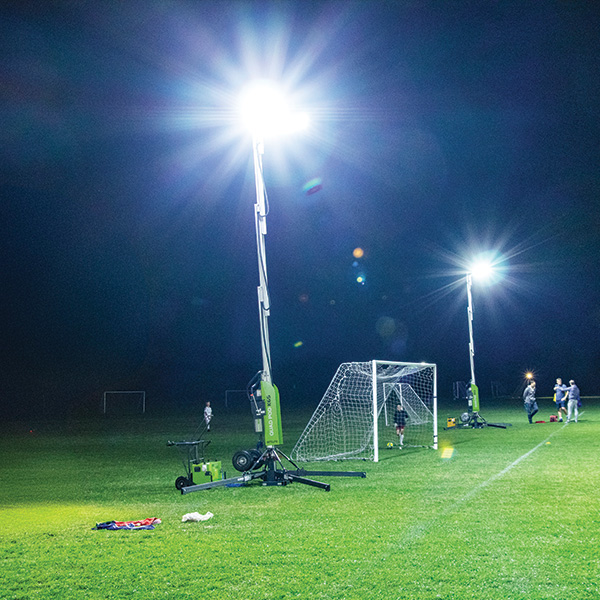

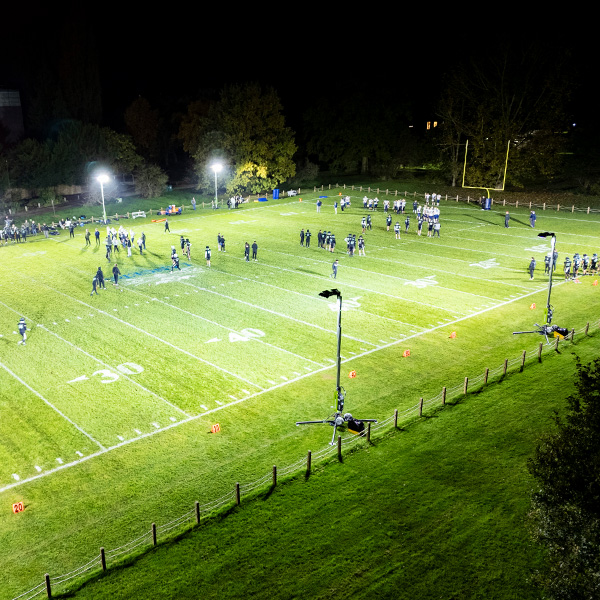

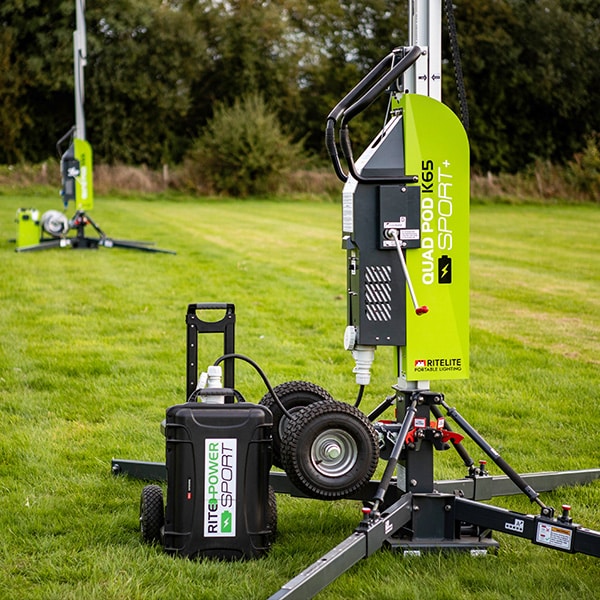

Quad Pod K65 Mobile Sports Lighting Tower
The full standard model range is as shown in the below tables. To discuss specific requirements or the options available in more detail please do not hesitate to contact us or call 01780 765600
K50

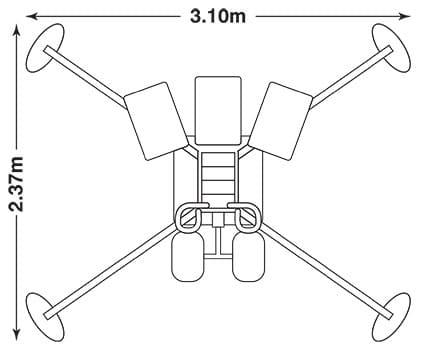

| Product Code | Mast Height | Light Heads | Weight | Closed Dimensions | Open Dimensions | Wattage | Voltage | Lumens | Equivalent Lumens |
|---|---|---|---|---|---|---|---|---|---|
| K50/MK5-L2X3/110/T60309 | 5m | L2x3 | 215Kg | 1.09 x 0.83 x 1.95m | 2.37 x 3.1 x 5m | 730 | 110 | 97,000 | 129,000 |
| K50/MK5-L2X3/230/T60309 | 5m | L2x3 | 215Kg | 1.09 x 0.83 x 1.95m | 2.37 x 3.1 x 5m | 730 | 230 | 97,000 | 129,000 |
| K50/MK5-L3X3/110/T60309 | 5m | L3X3 | 220Kg | 1.09 x 0.83 x 1.95m | 2.37 x 3.1 x 5m | 1100 | 110 | 146,000 | 208,000 |
| K50/MK5-L3X3/230/T60309 | 5m | L3X3 | 220Kg | 1.09 x 0.83 x 1.95m | 2.37 x 3.1 x 5m | 1100 | 230 | 146,000 | 208,000 |
| K50/MK5-L3X4/110/T60309 | 5m | L3X4 | 225Kg | 1.09 x 0.83 x 1.95m | 2.37 x 3.1 x 5m | 1460 | 110 | 195,000 | 266,000 |
| K50/MK5-L3X4/230/T60309 | 5m | L3X4 | 225Kg | 1.09 x 0.83 x 1.95m | 2.37 x 3.1 x 5m | 1460 | 230 | 195,000 | 266,000 |
K65
| Product Code | Mast Height | Light Heads | Weight | Closed Dimensions | Open Dimensions | Wattage | Voltage | Lumens | Equivalent Lumens |
|---|---|---|---|---|---|---|---|---|---|
| K65/MK5-L2X3/110/T60309 | 6.5m | L2x3 | 227Kg | 1.09 x 0.83 x 1.95m | 2.37 x 3.1 x 6.5m | 730 | 110 | 97,000 | 129,000 |
| K65/MK5-L2X3/230/T60309 | 6.5m | L2x3 | 227Kg | 1.09 x 0.83 x 1.95m | 2.37 x 3.1 x 6.5m | 730 | 230 | 97,000 | 129,000 |
| K65/MK5-L3X3/110/T60309 | 6.5m | L3x3 | 232Kg | 1.09 x 0.83 x 1.95m | 2.37 x 3.1 x 6.5m | 1100 | 110 | 146,000 | 208,000 |
| K65/MK5-L3X3/230/T60309 | 6.5m | L3x3 | 232Kg | 1.09 x 0.83 x 1.95m | 2.37 x 3.1 x 6.5m | 1100 | 230 | 146,000 | 208,000 |
| K65/MK5-L3X4/110/T60309 | 6.5m | L3X4 | 237Kg | 1.09 x 0.83 x 1.95m | 2.37 x 3.1 x 6.5m | 1460 | 110 | 195,000 | 266,000 |
| K65/MK5-L3X4/240/T60309 | 6.5m | L3X4 | 237Kg | 1.09 x 0.83 x 1.95m | 2.37 x 3.1 x 6.5m | 1460 | 230 | 195,000 | 266,000 |
| Image | Product Code | Name | Quote |
|---|---|---|---|
 | SE/110EL142 | 110V 14m Extension Lead | |
 | SE/220EL142 | 240V 14m Extension Lead | |
 | 1.6KW Industrial Generator 110V or 240V | ||
 | 3.0KW Electric Start 110V or 240V | ||
 | K50/K65-GEN/5.4KW | 5.4kW Electric Start AVR Generator | |
 | RP3850 | RITE-POWER 3850 Portable Battery Powered Generator | |
 | RP5250 | RITE-POWER 5250 Portable Battery Powered Generator | |
 | RP10000 | RITE-POWER 10000 Battery Powered Generator | |
 | RP20000 | RITE-POWER 20000 Battery Powered Generator | |
 | RP7700 | RITE-POWER 7700 Portable Battery Powered Generator | |
 | K65 Protect – Quad Pod Padding | ||
 | K50/K65-COVER | Quad Pod Cover |
