A High Power, LED Multi-Functional 360º Area Lighting System
Up to 92,000 Equivalent Lumens Light Output

K41

KEY FEATURES OF THE K41 PORTABLE AREA FLOOD LIGHTING SYSTEM?

Automated

Automated light output control for maximised power efficiencies and energy savings
Robust

Robustly manufactured for harsh working conditions. Corrosion resistant aluminium and stainless-steel construction
Flexible

180 – 360 degree flexible set up for maximum flexibility and applications
BeamControl

Beam Control precision light direction to focus all the light where it is needed with minimised light pollution
Output

Large area light coverage from a max 380W power requirement
Battery

Silent, emission-free, zero carbon lighting solution when powered by a RITE-POWER battery powered generator
K41
Buy

Quantity

TRIPOD
Buy

Quantity

RUGGED CONSTRUCTION FOR MAXIMUM APPLICATIONS

Impact

Polyethylene impact resistance handlesxx

Robust

Robust aluminium case. IP65 water resistant

IP65

Stackable and compact for transport and storage

Stackable

Folding Suspension eye for 360° deployment

K41 ARE LIGHTING SYSTEM MODELS

There are 3 standard K41 models to meet every application and budget. Additional optional features are available for all models outlined below with other bespoke specifications also available.

K41 Setup
K41-S1

360°-180° configurable light system. Simple on / off control of the light with the light level able to be set to meet requirements via an integrated digital dimmer system from 0-100% brightness. 5M down lead fitted. 110V or 240V input available.

K41-S2

As S1 model but with the additional functionality of a lighthead mounted Dust To Dawn (D2D) switch and a link box at the power input to enable multiple lights to be linked or daisy chained together to run from one power source.

K41-S3

The K41-S3 model has all the functionality of the S1 & S2 models plus a ground level control box and the addition of a microwave occupancy sensor enabling the light to automatically turn on to a pre-set light level when people or vehicles approach maximising energy savings on site and duration of battery power sources.

K41 Setup
Fetures K41-S1 K41-S2 K41-S3
0-100% Dimmer
Control Method In Lighthead In Lighthead Ground Level Pendant
Linkable functionality to other lights or equipment N/A
Link position N/A Ground Level Ground Level
Dusk-to-Dawn sensor N/A
Control position N/A In Lighthead Ground Level Pendant
Occupancy sensing
Control position Ground Level Pendant
Detachable inline pendant optional
110V or 240V input
5M cable with 110V or 240V plug
Diffuser screen for reduced glare optional optional optional
Folding suspension eye for 360° deploy optional optional optional
Pendant lockout box N/A N/A optional
Find me indication light optional optional optional

FLEXIBLE LIGHTING FOR ALL APPLICATIONS

K41 Setup 350
K41 Drone 360
K41 Relux 360
K41 Setup 180
K41 Drone 180
K41 Relux 180
K41 Gallery 8
K41 Gallery 1
K41 Gallery 7

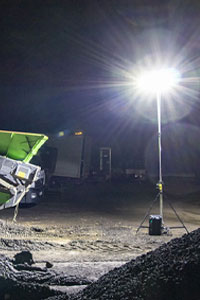

K41 180° setup at Hinch's Yard in January
K41 Gallery 5

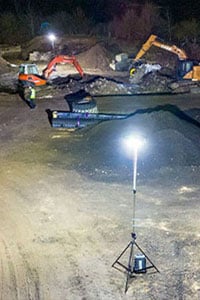

K41 180° setup in action at Hinch's Yard in January
K41 Gallery 4
K41 Gallery 3
K41 360° setup in action at Hinch's Yard in January
K41 Gallery 2
K41 180° setup in action at Hinch's Yard in January
K41 Gallery 6
DIMENSIONS WIDTH HEIGHT LENGTH
360º Configuration 561mm 161mm 535mm
180º Configuration 356mm 160.6mm 980mm
WEIGHT 13.4Kg
POWER SUPPLY 110V / 240V AC 50Hz input
POWER CONSUMPTION 380W
FREQUENCY 50/60Hz
LUMENS 92,000 equivalent lumens*
COLOUR TEMP 6500K
CRI >70
AVERAGE LIFE 50,000 hours
TEMP RANGE -20ºC to +50ºC

*when comparing light output to other symmetrical lensed beam pattern products

STOCK CODE DESCRIPTION
K41-S1A K41-S1A 110V fitted with IP44 industrial site plug**
K41-S1B K41-S1B 240V fitted with IP44 industrial site plug**
K41-S2A K41-S2A 110V fitted with IP44 industrial site plug**
K41-S2B K41-S2B 240V fitted with IP44 industrial site plug**
K41-S3A K41-S3A 110V fitted with IP44 industrial site plug**
K41-S3B K41-S3B 240V fitted with IP44 industrial site plug**

**wide range of country specific plugs available for non UK users

TECHNICAL DRAWING

TOP VIEW
K41 - Technical Drawing-360 Top
K41 - Technical Drawing-180 Top
SIDE VIEW
K41 - Technical Drawing-360 Side
K41 - Technical Drawing-180 Side

Compatible 4.5M Heavy Duty Tripod

This rugged steel tripod is designed for rough terrain applications. Fitted with safety interlock and hand winch mechanism. The tripod will raise up to 30Kg of head load. With the correct lighting system fitted the tripod can provide the platform for a high light output normally only achievable with a towed system. Load spreading feet are attached to steel legs to allow use of ballast bags or pegging.

SPECIFICATIONS

  • Robust steel construction
  • 3 section tripod
  • Fitted with DIN connector
  • Heavy duty winch
  • Anti-drop safety interlock
  • 1 x adjustable leg for uneven surfaces
  • Leg pad diameter 12cm
PRODUCT CODE K-LITE/TRP/4.5M
CLOSED HEIGHT 2.0m
MAXIMUM HEIGHT 4.5m
EXTENDED LEG DIAMETER 1.9m
LOAD CAPACITY 30Kg
TRIPOD WEIGHT 21Kg
K41 - TripodK41 - Tripod
4.5m Heavy Duty Tripod Diagram4.5m Heavy Duty Tripod Diagram
K41 - Tripod Open4.5m Heavy Duty Tripod Diagram
ImageProduct CodeNameQuote
1.6KW Industrial Generator 110V or 240V

Quantity

3.0KW Electric Start 110V or 240V

Quantity

K-LITE/TRP/4.5M4.5m Heavy Duty Tripod

Quantity

SLK45-LITE/TRP/4M4M Outdoor tripod

Quantity

RP1750RITE-POWER 1750 Portable Battery Powered Generator

Quantity

RP1750X2RITE-POWER 1750x2 Portable Battery Powered Generator

Quantity

RP3850RITE-POWER 3850 Portable Battery Powered Generator

Quantity

RP5250RITE-POWER 5250 Portable Battery Powered Generator

Quantity

RP7700RITE-POWER 7700 Portable Battery Powered Generator

Quantity

SLK45-LITE/BBTripod Ballast Bags

Quantity
