| Model | The RP20000 combines a 21.5 kWh LiFePO4 battery with a pure sine-wave inverter in a rugged, manoeuvrable IP44 enclosure. It supplies 110 V and 230 V AC power and can recharge while supporting connected loads through its pass-through power system |
|---|---|
| Product Code | RP20000 |
| Max Continuous Power (depending on type of load) | 10kVA (8000W) continuous / 18000W peak |
| Simultaneous Recharge / Discharge / Charge | Yes |
| Weight | Standard: 265Kg. Centre lift: 325Kg |
| Exterior Dimensions L x W x H | Standard: 115 x 78 x 78cm. Centre lift: 115 x 87 x 90.2cm |
| Recommended Operating usage temperature | -10°C to 40°C |
| To charge | 0°C to 40°C |
| To store | -5°C to 40°C |
| AC Input / Charging | 187-265 V AC, 45-65 Hz through 230 V 32 A IEC 60309 inlet. Integrated charger; configurable input-current limit. (Max 7000W) |
| Socket options available | CEE 16A inlet and outlet, others available on request |
| IP rating | IP44 – subject to plug/socket type fitted |
| Solar Connection / Mains Connection | The RP20000 is designed to operate on its own or by connecting to a separate main supply (e.g. Generator / Mains).
The RP20000 system will call on generator start or mains supply at low charge or high load. A solar connection can also be made to the system for battery charging.
|
| Cell Chemistry | Lithium LiFePO4 |
| Capacity | 21500 watt/hours |
| Expected Charge Cycles | Up to 5000 cycles |
| Protection | RCBO Circuit breaker on the inlet and independently on each outlet; short-circuit, overload, over-temperature, low-battery warning and low-battery shut-off. |
| Recharge Times (approx from fully discharged via integrated charger) | 2-3 hours depending on current limit settings |
| Additional Features | Automatic mains failure function UPS, Optional solar charge input. Optional rough terrain transport wheel set. |
| AC output voltage | 230V (50Hz) 48V DC output / option 110V (50Hz) Circuit breaker on the inlet and independently on each outlet; short-circuit, overload, over-temperature, low-battery warning and low-battery shut off |
| Cooling | Fan assisted cooling |
RITE-POWER 20000 Battery Powered Generator
The RITE-POWER 20000 industrial portable battery powered generator supplies 10kVA (8000W) continuous power from a 15400 Wh energy bank to power tools, lighting and construction equipment for a considerable time. Robustly constructed, safe and silent operation with zero emissions this product is designed for almost any remote application where power is required.
Gallery
Key Features & Benefits of the RITE-POWER 20000 Battery Powered Generator
Rugged, Strong construction. Providing Power wherever it is neededUltra flexible supply of power for any remote location. IP44 waterproof for outdoor use
Reliable pure sine-wave inverter energyPower any compatible equipment including tools, lighting and electronics. Each socket individually RCBO protected
Optional SOC DataIndependent remote state of charge telemetry system

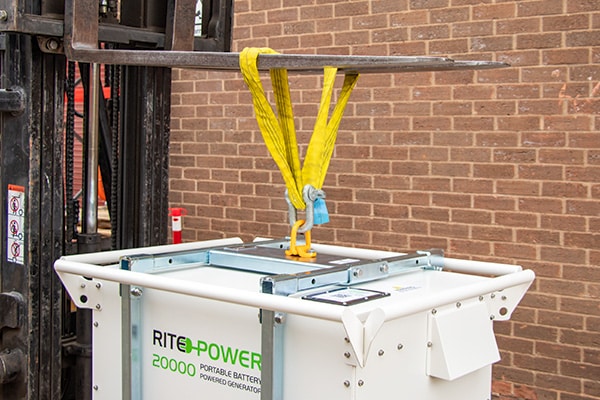

Highly MobileCan be easily moved on wheels or with a forklift
Optional Rough Terrain Transport Wheel SetFor use on uneven ground
System Energy Monitor Easily view charge status, battery capacity, current load, estimated duration and recharge time
Virtually silent operationExcellent for use in noise sensitive areas
LED Control Panel Reliable & safe to use. Full visibility of all current status’ and ability to control input current
Rechargeable Lithium Phosphate BatteriesCheap to run – no fuel needed. Ultra long life up to 5000 cycles
Bespoke configurations available on request. Please contact us to discuss your requirements.
