LED Upgrade Kits for Lighting Towers

Product Description / Technical Information

UPGRADE YOUR MOBILE LIGHTING TOWER FLEET

ONE FOR ONE –  SWAP METAL HALIDE FOR LED



Ritelite’s LED upgrade kits for lighting towers are a fantastic way to generate significant energy savings and extend the life of a metal halide tower light. By retrofitting Ritelite’s LED light heads any lighting tower is instantly brighter, more robust and requires zero maintenance.

Key benefits of upgrading your lighting tower to LED

• Increased light where it is needed across the working area
• Highly durable, robust fittings with polycarbonate, non shatterproof, lenses
• No lamp changes required throughout product life
• Zero maintenance, 50,000 hour average life
• Instant start and re-start
• Reduced wattage light heads generate significant fuel savings during use
• No light degradation during life of product
• Low cost solution to extend the life of a lighting tower

By upgrading your lighting towers from Metal Halide to LED you will be increasing the area that will be lit up.

LED – over 4500m² area coverage at 20 lux average vs Metal Halide – only 4200m²
area coverage at 20 lux average (figures based on the 240W light head).

Fast upgrade time

Approximate Upgrade Times*

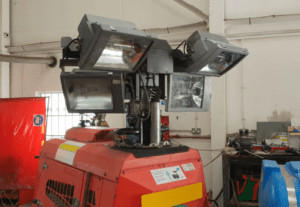

• VT1 fitted with 4 x 1000W metal halide lamps with separate ballast in base of unit – 1.5 hours
• VB9 fitted with 4 x 400W metal hailde lamps (self ballasted fittings) – 0.5 hours

*These are approximate times for changing light heads to LED based upon our own experience.

Specifications of the Ritelite LED upgrade kits for lighting towers

• Integrated ballast / driver
• 5700K cool white colour temperature
• Average life of 50,000 hours
• Tough non-corrosive aluminium die casting
• Rated IP65 – Ideal for outside use
• Adjustable tilt and turn brackets
• 1.5m cable with in-line connector

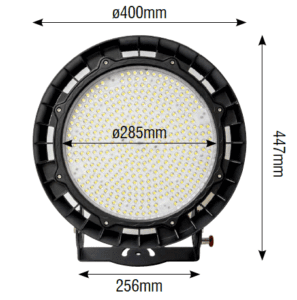

200W Light Head Specification to replace a 400W Metal Halide Light Head

240W Light Head Specification to replace a 1000W Metal Halide Light Head
